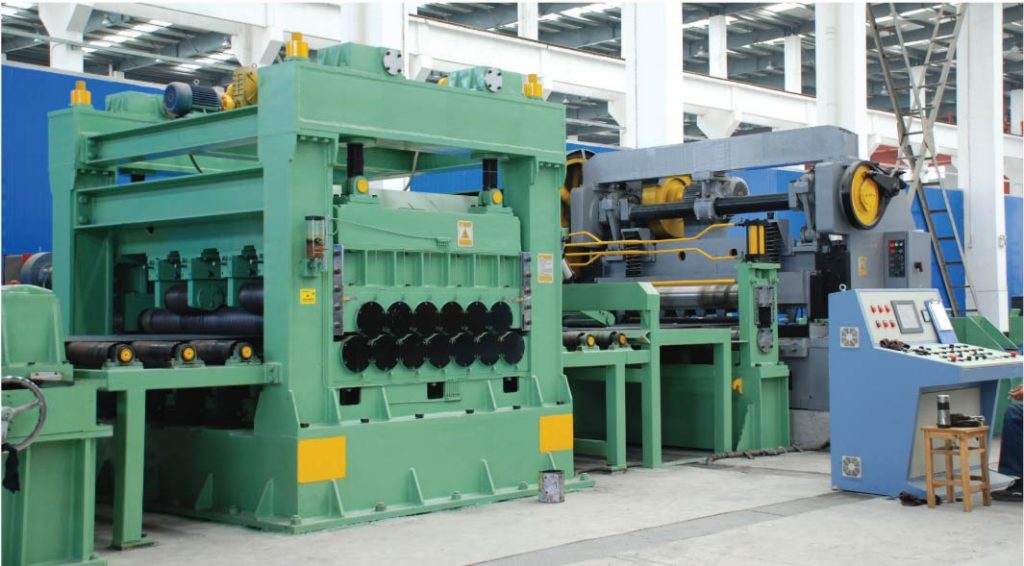

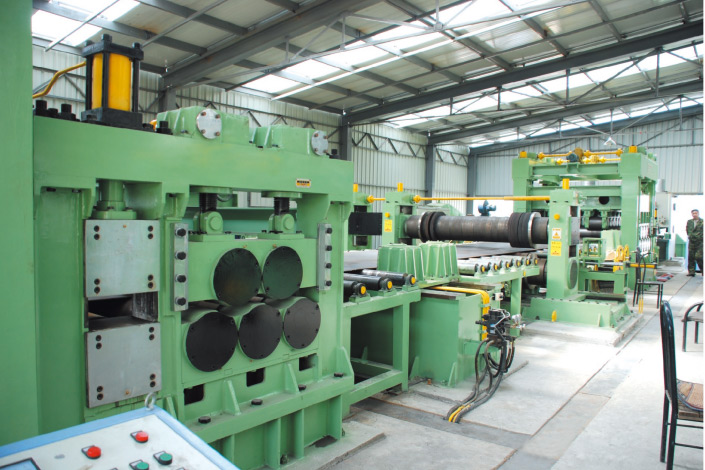

Thick Coil Cut to Length Line
Product Introduction:
Thick plate cut-to-length line can meet customer’s request of max line spoed 20m/min by uncoiling and leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
The cut-to-length line (plate CTL. Machine) has one pre-leveling machine and one fine leveling machine driven by DC or AC motors, and the length-fixing is by encoder, shearing style is stop-shear.
The thick plate cut-to-length line (plate CTI. machine) fit steel coils with thickness: (3-12mm, 4-16mm, S-20mm) and changeable width, and length of finished sheets depend on customer’s practical need.
Advantages & Characteristics of Plate CTL Machine:
1. Plate CTL. Machine with High precision
Line speed can be up to 20m/min, 4-5pcs/min 2000mm Length sheets in average.
Leveling precision: ±1.5mm
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±Imm/m

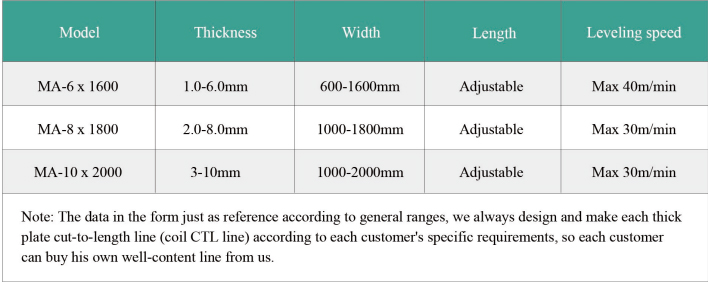

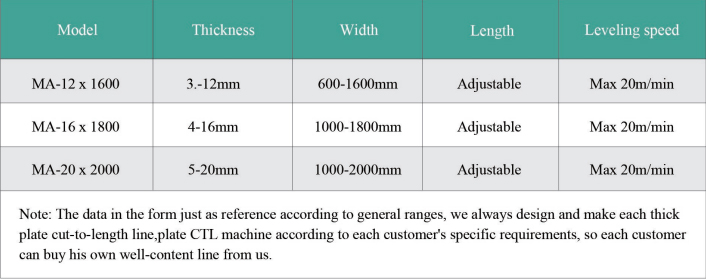

The Detailed Specifications as Follows:

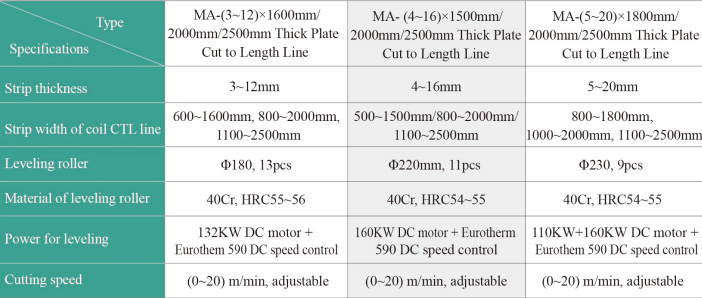

Detail Specification of Coil CTL Line:

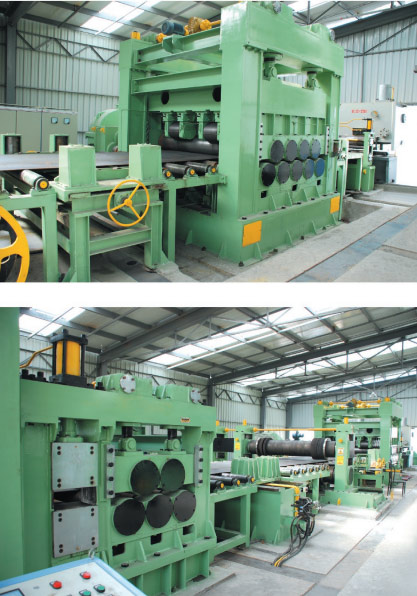

Thick Sheet Leveling Cut To Length Line
Related category: For more information about Cut to Length Line, click the link.
FAQ
The Thick Coil Cut to Length Line is a specialized machine designed to process thick steel coils by uncoiling, leveling, and cutting them into flat sheets of specific lengths. This line is particularly suited for materials with thicknesses ranging from 3 mm to 12 mm.
Line Speed: Up to 20 meters per minute.
Sheet Length Precision: ±0.5 mm/m.
Leveling Precision: ±1.5 mm.
Sheet Diagonal Length Precision: ±1 mm/m.
Average Output: Approximately 4–5 sheets per minute, each 2000 mm in length.
This machine is capable of processing various materials, including:
Cold-rolled steel
Hot-rolled steel
Galvanized steel
Stainless steel
Aluminum
Copper
