Thick Coil Slitting Line
Thick Coil Slitting Line Introduction

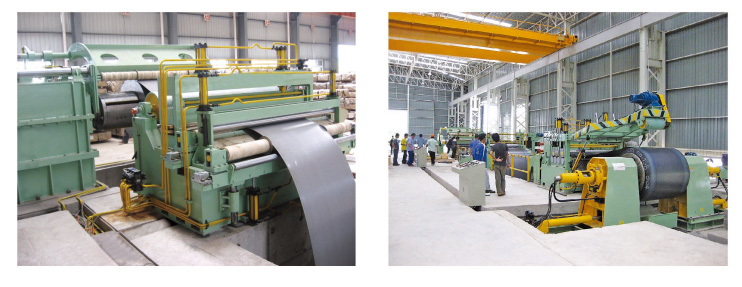

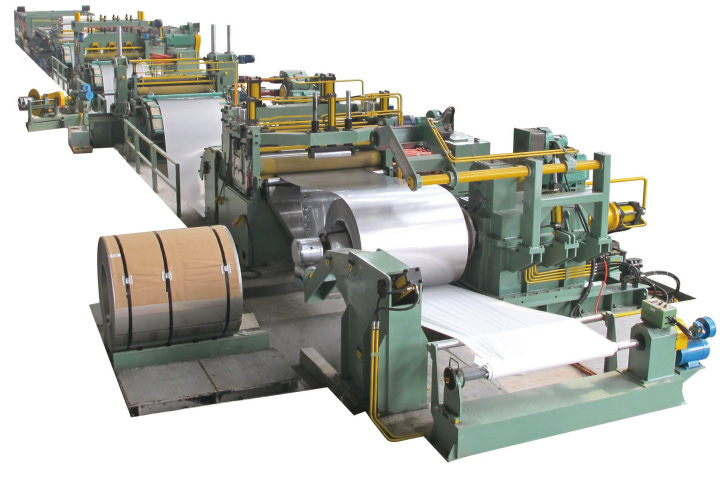

This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre separator & tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4~16)mm, (5~20) mm;
Strip width: 500~1800mm, 800~2000mm or 1000~2200mm.

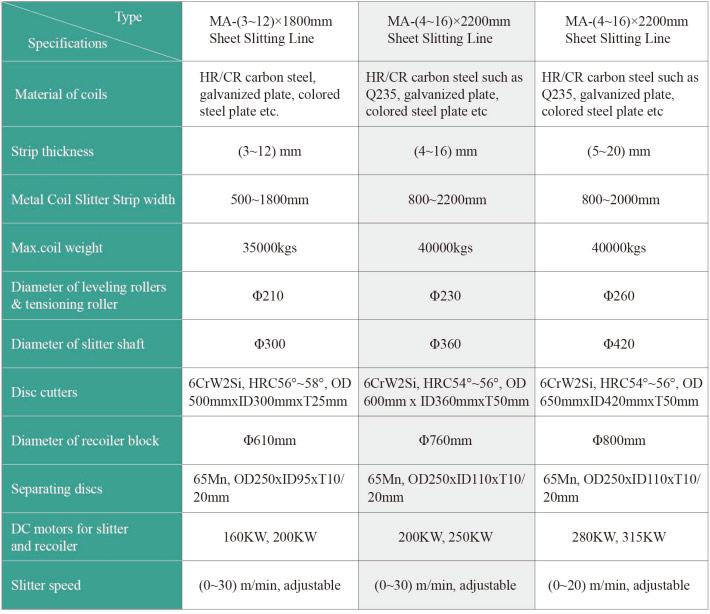

Detail Specification of Coil Slitting Machine:
Related category: For more information about coil slitting line, click the link.
FAQ
A Thick Coil Slitting Line is a specialized machine designed to slit thick steel master coils into narrower strips, known as “baby coils.” This process is essential for industries requiring precise metal strips for further processing.
The slitting line is capable of processing various steel materials, including:
Cold-rolled steel
Hot-rolled steel
Carbon steel
Galvanized steel
Color-coated steel
The line comprises several components working in tandem to ensure efficient slitting:
Coil-loading car
Double mandrel big-load uncoiler
Portal style coil-head guide
Press and shovel equipment
Double roller pinching feeder
Five-roller leveler
End-cutter
Roll table
Central aligner
Disc slitter
Scrap winder
Hole accumulator
Pre-separator & tensioner
Portal style coil-separator and presser
Recoiler
Coil unloading car
Hydraulic control
Electric control
