Profile Bending: A Comprehensive Guide from Design to Production
In many industries, profiles are widely used. In order to manufacture a variety of products and components from profiles, it is necessary to give them angles and shapes through profile bending. The process of curving profiles and producing different products is carried out using specialized machines designed for each type of profile.
In this article from the Mazs Group magazine, we aim to provide more detailed information about profile bending operations. Various bending methods are explained along with their characteristics and differences. The machines used for bending are also introduced. Finally, we examine the factors affecting machine prices and the applications of profile bending.
This article examines the following topics:
- What Is Profile Bending?
- Types of Profiles
- Profile Bending Methods
- Profile Bending Using Machines
- Forces Applied in Profile Bending
- Differences Between Profile Bending Methods
- Equipment Required for Profile Bending
- Factors Affecting the Price of Profile Bending Machines
- Applications and Importance of Profile Bending
- Conclusion
What Is Profile Bending?
In the article What Is a Profile, we explained that a profile is a steel cross-section with a specific length, which is divided into two categories: open profiles and closed profiles. Each of these categories includes various types used for different applications.
After different types of steel components such as beams, angles, frames, pipes, and others are produced on profile and pipe production lines, further operations are often required for specific applications. When there is a need to curve profiles, design components, convert them into new products, and use them in different applications, profile bending is employed.
In the bending process, force is applied to the profile without breaking or damaging it, giving it an angle and bending it into curved or circular shapes. This creates deformation in the profile, making it suitable for use in various construction and industrial applications. Depending on the type of profile, different methods such as manual profile bending or machine-assisted profile bending are used.
Mazs Group delivers high-precision coil slitting line designed for speed, durability, and clean cuts. Boost your production efficiency with advanced technology and expert after-sales support.
Types of Profiles
As mentioned earlier, profiles are produced with either open or closed cross-sections. These two categories have different designs and are manufactured using different methods.
Open profiles are produced using a direct method. In this process, cut steel strips pass through rotating rollers where gradual bending and forming take place. The seam is then welded, and finally the profiles are cut to the desired lengths using cold saws or other cutting equipment. Examples of open profiles used in various industries include Z, C, French profiles, angles, Mexican profiles, beams, simple frames, gutters, and channels.
Closed profiles such as coil profiles, box sections, pipes, UPVC, and HSS are produced indirectly. In this method, steel sheets are first roll-formed into welded pipes, after which profile bending and cutting operations are performed. It should be noted that during cutting, if the profile is hard and difficult to cut, saw blades are used to achieve the required dimensions.
Profile Bending Methods
Profiles are shaped using two main methods: manual profile bending and machine-assisted profile bending. The choice of method depends on the thickness and dimensions of the profile, its material and type, and the desired final shape. Lightweight profiles with low thickness and density (less than 2 mm) can be bent manually. However, for heavy profiles with greater thickness, industrial methods using machines are required.
Manual Profile Bending
As the name suggests, this method is performed by a person using human force. Tools such as hammers, levers, clamps, and molds are used. In manual bending, lightweight profiles with small thickness are deformed using simple tools and applied force.
Use of Heat in Manual Profile Bending
When the profile thickness increases, heat is required to facilitate deformation. This method, known as hot bending, involves heating the profile in a furnace until it becomes soft and flexible, after which bending is performed more easily. Hammering is also required to eliminate cracks that may occur during the process.
Industrial Profile Bending
As stated earlier, heavy and thick profiles require industrial bending methods. In this method, there is no need for manual force, and more complex deformations can be achieved. The profile passes through fixed and movable rollers, where bending takes place.
Cold Bending Method
In this method, no heating is required. The profile is bent at ambient temperature by passing it through rollers that apply pressure and cause deformation. Since no heating equipment is needed, costs are reduced.
Induction Heating Bending Method
When precise and complex bending is required, induction heating bending is used. In this method, specific areas of the profile are rapidly heated and softened using induction heating coils. The profile is then bent by the machine, and cooling is applied afterward to maintain the shape. This method produces high-quality bends while preserving the integrity of the profile.
Roll or Roller Bending Method
Roll bending is widely used for bending most profiles. The profile is placed between adjustable rollers that apply pressure at specific points to create curvature. This process is highly precise and fast, although it may sometimes cause flattening of the profile.

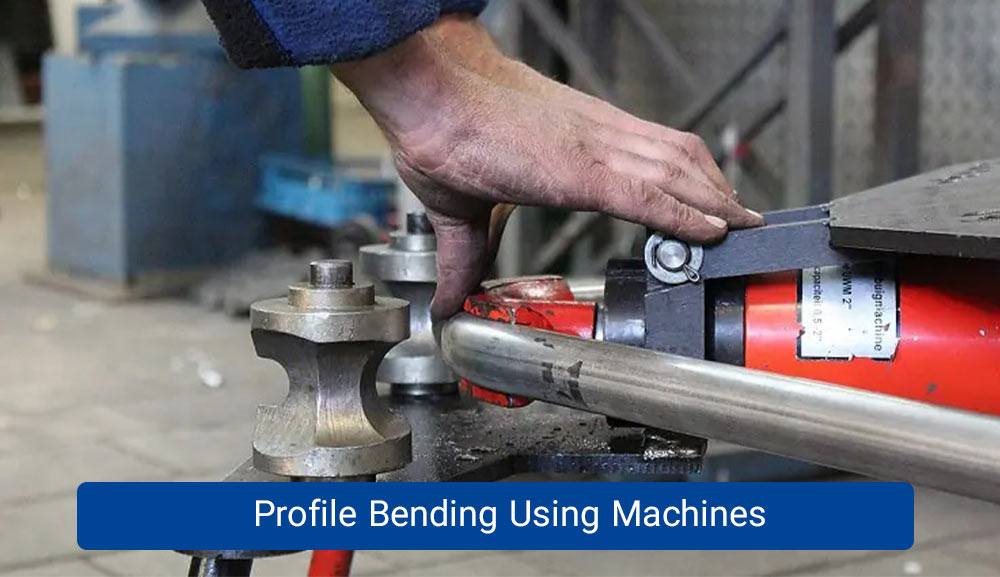

Profile Bending Using Machines
