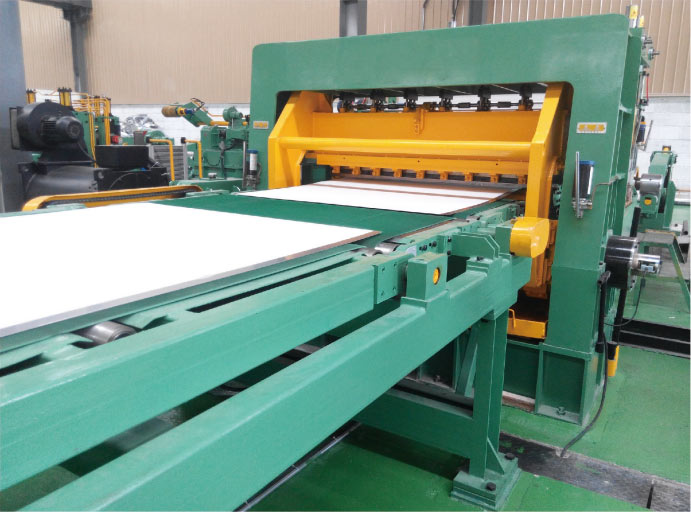

Middle Thick Steel Coil Cut to Length Line
Product Introduction:
Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates

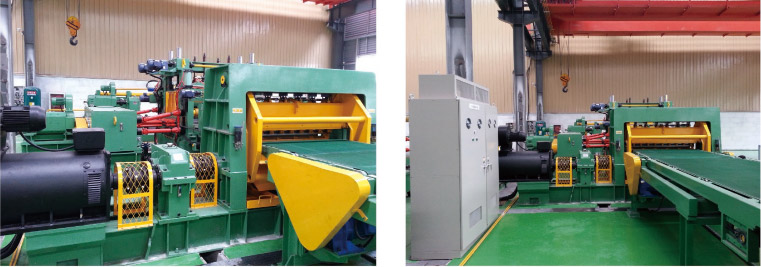

The plate cut-to-length line (coil CTL. line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear
The middle thick plate cut-to-length line fit steel coils with thickness: (I-6mm, 2-8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
Advantages & Characteristics for This Coil CTL Line:
1. High precision
Line speed can be up to 30m/min, 7~Spes/min 2000mm Length sheets in average.
Leveling precision: ±1mm/m
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m

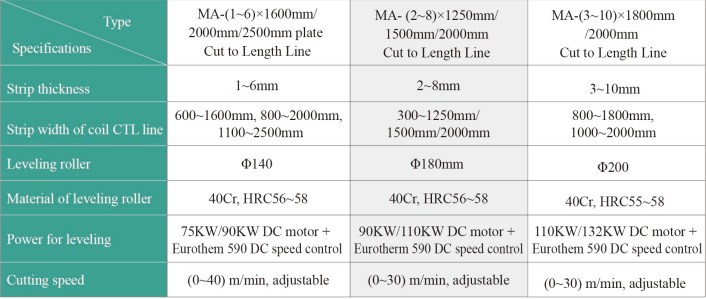

The Detail Specification as Follows:
Related category: For more information about Cut to Length Line (CTL) systems, click the link.
FAQ
The Middle Thick Steel Coil Cut to Length Line is a specialized machine designed to process middle-thick steel coils by uncoiling, leveling, and cutting them into flat sheets of specific lengths. This line is particularly suited for materials with thicknesses ranging from 2 mm to 10 mm.
This machine is capable of processing various materials, including:
Cold-rolled steel (CR)
Hot-rolled steel (HR)
Galvanized steel (GI)
Pre-painted galvanized steel (PPGI)
These materials should be in coil form and within the specified thickness and width ranges.
Strip Thickness: 2 mm to 10 mm
Strip Width: 600 mm to 1800 mm (or up to 2000 mm, depending on the configuration)
Sheet Length: Customizable based on requirements
Length Tolerance: ±0.5 mm/m
Diagonal Tolerance: ±1.0 mm/m
These specifications ensure high-precision cutting suitable for various applications.
