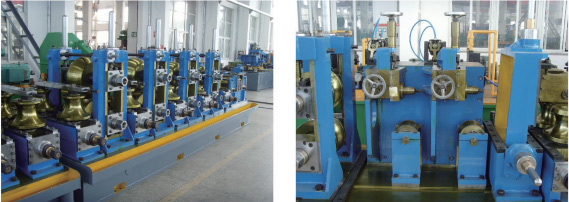

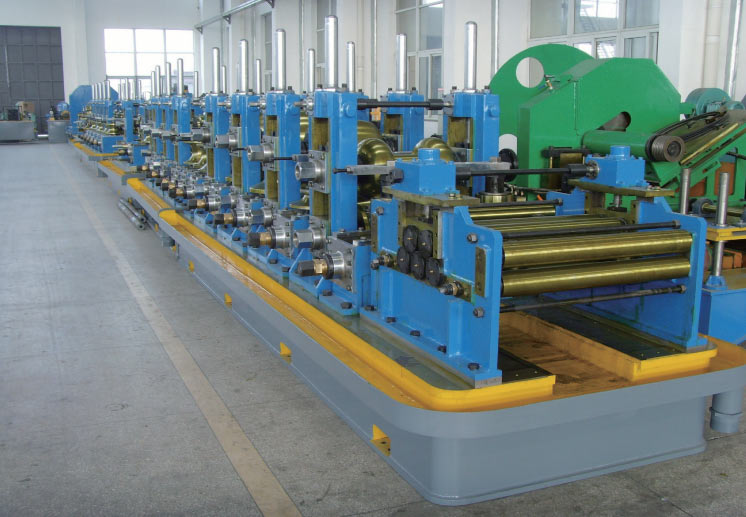

MA 325 HF Welded tube mill line
HF tube mill Specification:
Material to be processed: Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Type of Production: Round Tubes, Square, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 114, Max 273mm
Square Hollow Section: Min 130 x130, Max 215 x 215 mm
Rectangular Hollow Section: Min 80x 100, Max 140x 200 mm
Tube Thickness: Min 3.0mm Max 10.0 mm (X70 < 8mm) |
Forming Line Speed: Max 45m/min
(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm
Related category: For more information about Welded Pipe Machines , click the link.
FAQ
The MA 325 HF Welded tube mill line is a high-frequency (HF) welding production line designed to manufacture welded steel pipes and tubes. It efficiently transforms pre-slit carbon steel cold-rolled (CR) or hot-rolled (HR) coils into various pipe shapes, including round, square, and rectangular hollow sections.
This machine is capable of processing carbon steel, cold or hot rolled pre-slit strip coils of weldable grade with a maximum carbon content of 0.2%.
Round Tube Outside Diameter: 114 mm to 273 mm
Square Hollow Section: 130 x 130 mm to 215 x 215 mm
Rectangular Hollow Section: 80 x 100 mm to 140 x 200 mm
Tube Thickness: 3.0 mm to 10.0 mm (Note: For X70 grade steel, maximum thickness is less than 8 mm)
