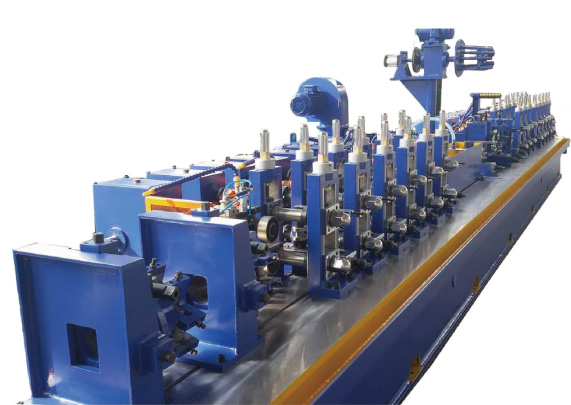

MA 32 HF Welded tube mill line

Introduction:

The MA-32 high-frequency welded pipe production line is used to produce both welded pipes of 10 ~ 38mm in diameter and 0.5 ~ 2.5mm in wall thickness. Square and rectangular pipes and deformed pipes of the corresponding size are available too. This equipment uses roll pass design, so the production line can produce welded steel pipes which has the feature of good quality machining and precision assembling.

Main Specifications:

(1) Raw Material Specifications
(2) Low carbon steel, low alloy constructional steel CR, HR, GI coils
(3) Mechanical properties: ab≤520Mpa, os≤340MPa
(4) Width range of steel strip : 30 ~ 120mm
(5) Thickness of steel strip: 0.5 ~ 2.5mm
(6) Strip coil
Inner Diameter: Φ580 ~ Φ640mm
Outer Diameter: Φ800 ~ Φ1500mm
Coil Weight: ≤ 1.5 ton

Finished Pipe Specifications:

(1) Pipe Diameter Φ10 ~ Φ38mm
(2) Wall Thickness 0.5 ~ 2.5mm for round pipes; 0.5-1.8mm for square/rectangular pipes.
(3) Length of Cutting 4~9m
(4) Length-cutting precision:+/-3mm

Forming Speed:
20 ~ 100m/min
Total Power Capacity
Approx. 400KW

Compressed Air:
(1) Flow Rate: 6m3/min
(2) Pressure: 5 ~ 7kg/ cm2

Water Supply for Machine Set:
(1) Flow Rate: 20T/h ~ 30 T/h
(2) Reservation Pool Capacity: 30m3

Workshop Arrangement:
Width of Workshop: 6m
Length of Workshop: 50m
Height of Workshop (from Ceiling Trail to Floor): 25 m

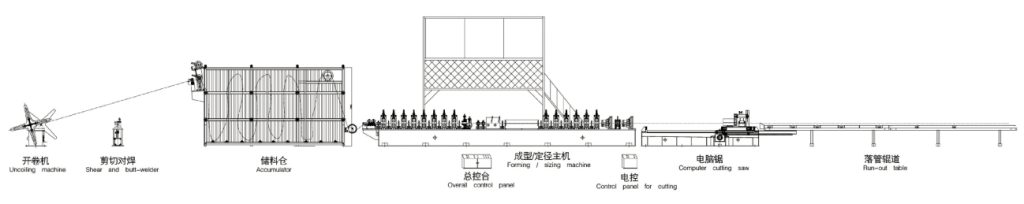

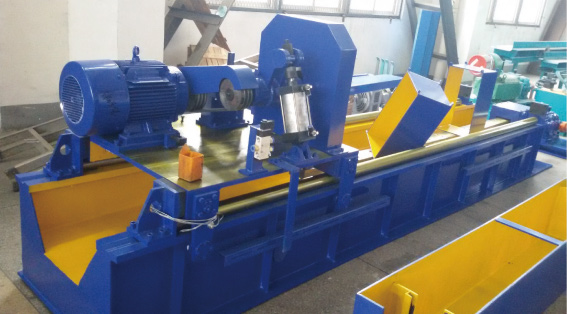

Technological Process:

Uncoiling → Cutting and Welding – Cage accumulator -(Feeding• Forming), (Seam guide• HF welding• Squeezing› Deburring), Water cooling, Sizing, Rough Straightening → STD Flying Saw Checking and Collecting -packing→ Storage
