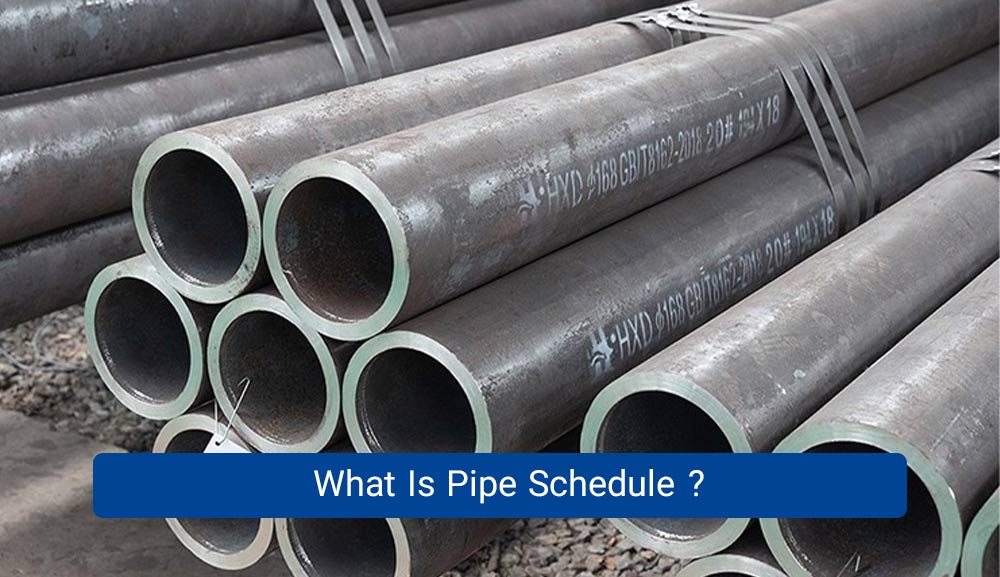

A Complete Guide to Seamless Pipe Classification
If your project requires seamless pipes it is essential to understand what a pipe schedule is. The pipe schedule is a standard used to define the wall thickness and outer diameter of a pipe. This classification determines the technical specifications and suitability of a pipe for specific applications. Seamless pipes come in a variety of schedules, with Schedules 20, 40, and 80 being the most commonly used. As the pipe schedule increases, so does the pipe’s strength, making it more suitable for industries that operate under high temperatures and pressures.
One critical consideration when purchasing pipes is their weight. A pipe schedule chart uses the values of wall thickness and outer diameter to determine the weight of one meter of pipe. In this article, we’ll explore these topics in greater detail, including how pipe schedule is calculated, different types of pipe schedules, standard classifications, and the sizes available across various schedules.
This article examines the following topics:
What Is Pipe Schedule?
To begin, let’s define what pipe schedule means. After seamless pipes are manufactured on the production line, they are categorized based on their schedule. The pipe schedule, or Schedule Number, is a measure used to determine a pipe’s wall thickness and size. As the schedule increases, the wall thickness and, consequently, the pipe’s weight also increase.
The pipe schedule serves as a standard that defines a pipe’s pressure tolerance and its suitable applications. Schedule classification in the production of seamless pipes helps ensure the correct wall thickness and diameter are chosen according to the project’s needs. For instance, if your project requires pipes with higher resistance to pressure and corrosion, you should choose pipes with a higher schedule rating. In addition to understanding what a pipe schedule is, selecting a reputable seamless pipe manufacturer in Iran is essential for a reliable purchase.
