Input raw material: pre-slit carbon steel CR, HR coils
Finished products: round tubes, square tubes and rectangular tubes as well as deformed tubes
Round tube outside diameter: 22 -89mm
Square tubes: Min12 x 12mm, Max70 x 70mm
Rectangular tubes: Ming x 12, Max60x 80 mm
Tube Thickness: 1.2 -4.0 mm
Forming Line Speed: Max 100 m/min
(Square and rectangular tubes are produced at lower speeds while side to wall thickness ratios are different.)
Tube Cut Length: 4-12 m
Length Accuracy: ± 3mm

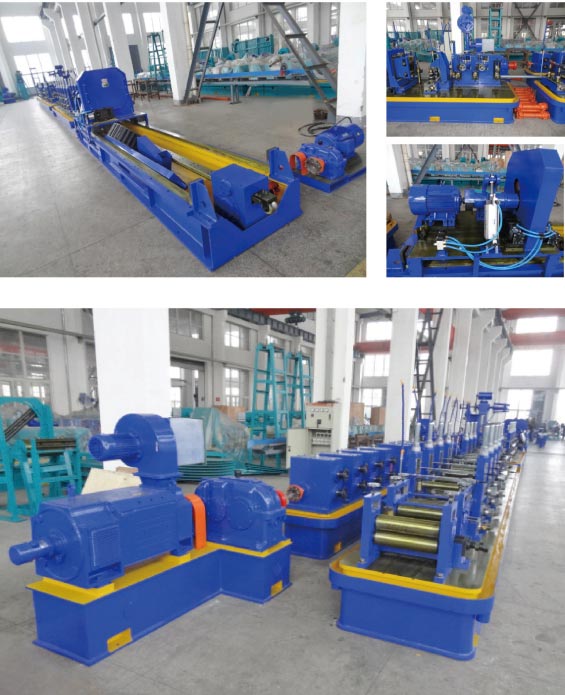

Drive Motor: DC 75kWx2, adjusted by Eurotherm 590 speed controller

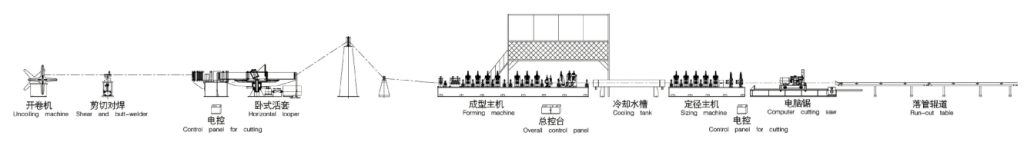

L i n e C o m p o s i t i o n :
Hydraulic Double Mandrel Uncoiler
Shear and TIG welder
Horizontal Strip Accumulator

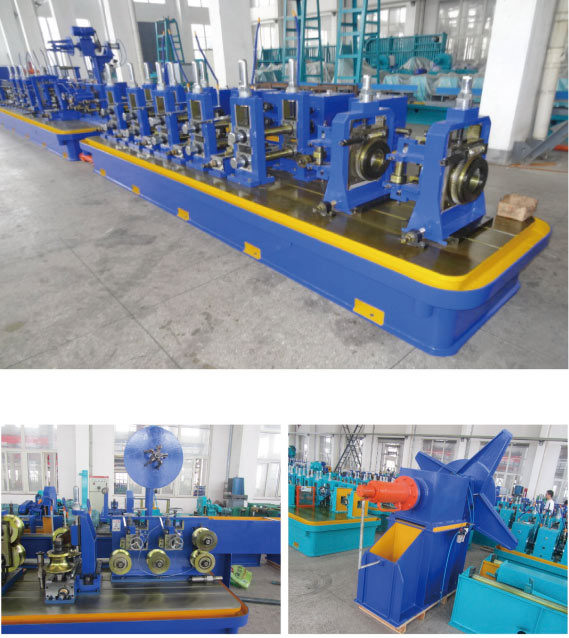

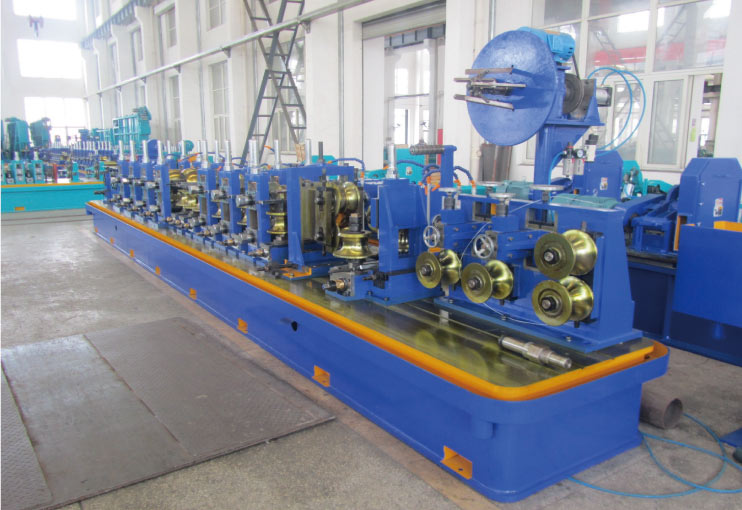

Forming, (Seam guide, Welding, Squeezing, Scraping), Cooling, Sizing and straightener Section. Computer Flying Saw Cut-Off.
Roller Straightener
End Milling and Chamfering Machine
Baling Press
Run Out Roll Table, inspection table & Collectors.
Solid State H.F. Induction Welder: 200 kW, Solid State (or vacuum Tube Type) |
Rolls: Rolls are manufactured complying with AISI D3 D2 or E52100
Electrical Control System
