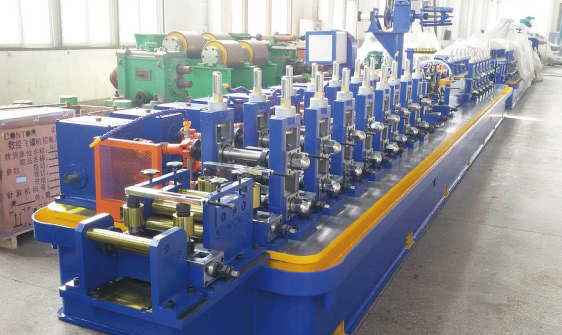

MA 25 HF Welded tube mill line
Layout Flow:
Strip material → decoiler → shear and welder → accumulator – forming and sizing machine → flying saw – packing
Moreover, include: electric control system, high frequency welder.
Specifications:
Material: low carbon steel and low alloy steel.
Outer diameter of welded pipes: max Φ32mm, min. Φ10mm
Wall thickness of welded pipes: max 1.5mm, min. 0.4mm
Forming speed: 40-120m/min
Motor: 30KW
HF welder: 100KW solid state
Related category: For more information about Welded Pipe making machine , click the link.
FAQ
The MA 25 HF Welded tube mill line is a specialized manufacturing system designed to produce small-diameter welded steel pipes using high-frequency (HF) welding technology. It efficiently transforms steel strips into round pipes through a series of forming, welding, and sizing processes.
Material: Low carbon steel and low alloy steel
Outer Diameter of Welded Pipes: Φ10mm to Φ32mm
Wall Thickness: 0.4mm to 1.5mm
Forming Speed: 40 to 120 meters per minute
Main Motor Power: 30 kW
High-Frequency Welder Power: 100 kW (solid-state)
The production process follows this sequence:
Strip Material → Decoiler → Shear and Welder → Accumulator → Forming and Sizing Machine → Flying Saw → Packing
Additionally, the system includes an electric control system and a high-frequency welder.
