MA 219 HF Welded tube mill line
Specification:
Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Type of Production: Round Tubes Squar, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 114, Max 219mm
Square Hollow Section: Min 90 x90, Max 170×170 mm
Rectangular Hollow Section: Min 80x 100, Max 140x 200 mm
Tube Thickness: Min 2.2, Max 8.0 mm
Forming Line Speed: Max 45m/min (Square and Rectangular Hollow Shapes are
produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm

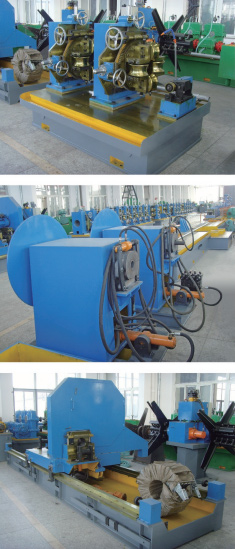

Line Composition
V-shape pre-discharging table (V coil stand)
Hydraulic charging wagon (coil car)
Hydraulic discharging machine (uncoiler)
Leveler and flattener
Shear and TIG Welder.

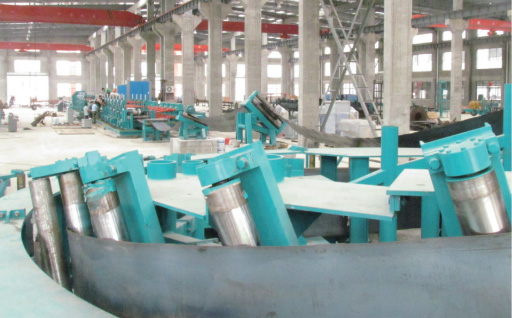

Horizontal Strip Accumulator.

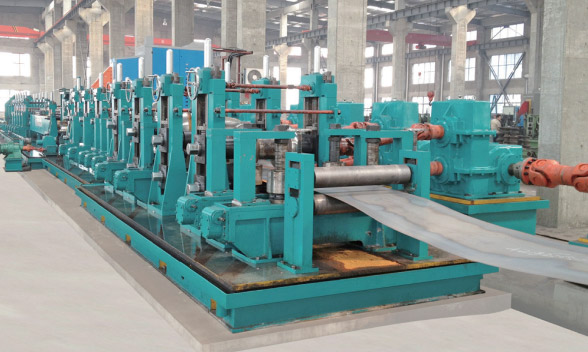

Forming, Welding, Cooling and Sizing Section.
Drive Motor: DC 90kwx4
Computer Flying Saw Cut-Off:
Straightener
End Milling and Chamfering Machine
Baling Press
Driven Roller Run Out Table, Inspection table & Collectors.
Solid State H.F. Induction Welder: 600 kW, Solid State Type
Rolls: Rolls are manufactured out of AISI D3 D2 or E52100
Hydraulic Units
Electrical Panels
Related category: For more information about Welded Pipe Machine , click the link.
FAQ
This machine is capable of processing carbon steel, cold or hot rolled pre-slit strip coils of weldable grade with a maximum carbon content of 0.2%.
Round Tube Outside Diameter: 114 mm to 219 mm
Square Hollow Section: 90 x 90 mm to 170 x 170 mm
Rectangular Hollow Section: 80 x 100 mm to 140 x 200 mm
Tube Thickness: 2.2 mm to 8.0 mm
The maximum forming line speed is up to 45 meters per minute. Note that square and rectangular hollow shapes are produced at lower speeds due to varying side-to-wall thickness ratios.
