MA 165 HF Welded tube mill line
Specification:
Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Type of Production: Round Tubes, Squar, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 50.8, Max 165mm
Square Hollow Section: Min 40x 40, Max 130 x 130 mm
Rectangular Hollow Section: Min 40 x 60, Max 100x 160 mm
Tube Thickness: Min 1.8 Max 6.0 mm
Forming Line Speed: Max 55 m/min
(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 15meter
Length Accuracy: ± 3mm
Line Composition:
V-shape pre-discharging table (V coil stand)
Hydraulic charging wagon (coil car)
Hydraulic discharging machine (uncoiler)
HydraulicShear and TIG Welder.
Horizontal Strip Accumulator.

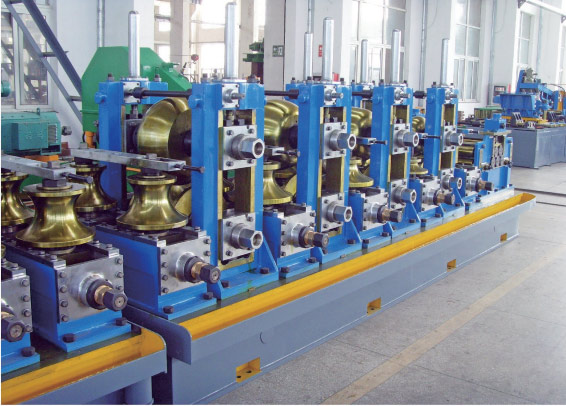

Forming, Welding, Cooling and Sizing Section.
Drive Motor: DC 132 kW+ 132 kW

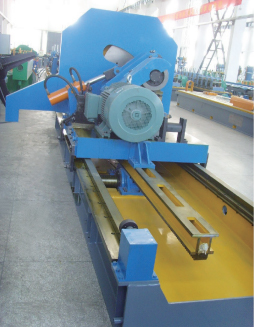

Computer Flying Saw Cut-Of:
Straightener
End Milling and Chamfering Machine
Baling Press
Driven Roller Run Out Table, Inspection table & Collectors,
Solid State H.F. Induction Welder: 400 kW, Solid State Type
Rolls: Rolls are manufactured out of AISI D3 D2 or E52100
Hydraulic Units
Electrical Panels
Related category: For more information about welded pipes making machine , click the link.
FAQ
The MA 165 HF Welded tube mill line is a specialized production line designed to manufacture welded steel pipes and tubes using high-frequency (HF) welding technology. It efficiently transforms pre-slit carbon steel cold-rolled (CR) or hot-rolled (HR) coils into various pipe shapes, including round, square, and rectangular hollow sections.
This machine is capable of processing carbon steel, cold or hot rolled pre-slit strip coils of weldable grade with a maximum carbon content of 0.2%.
Round Tube Outside Diameter: 50.8 mm to 165 mm
Square Hollow Section: 40 x 40 mm to 130 x 130 mm
Rectangular Hollow Section: 40 x 60 mm to 100 x 160 mm
Tube Thickness: 1.8 mm to 6.0 mm
